Bluetooth mesh lighting control dimmable led tube lights
The ARK bluetooth mesh lighting control dimmable led tube lights offers an easy and safe energy-saving retrofit solution for fluorescent led tubes, with 140 lumens per watt. The long-lasting and high-quality ARK is powered by an external driver, allowing the bypass of the existing ballast to eliminate compatibility issues and maintenance costs associated with ballasts.
The ARK dimmable led tube lights provides superior quality uniform, flicker-free lighting in a complete package. It uses about half the energy as fluorescent T8 tubes, with up to 70% reduction of overall operating costs.
The UL, cUL, and RoHS certified lamps are available in 2’, 3’ and 4’ lengths, in 4 different wattages (12W, 14W and 18W), with the form, fit and function of traditional T8 fluorescent lamps.
Dimmable led tube lights features:
1. Input at AC100-277V.
2. 3000K,3500K,4000K,4500K,5000K CCT tunable white.
3. 150lm/w without cover or 140lm/w with cover.
4. The external driver from 9w to 72w.
5. Dimming optional.
6. Magnet adhesive, and installation hole on both ends.
7. Five years warranty.

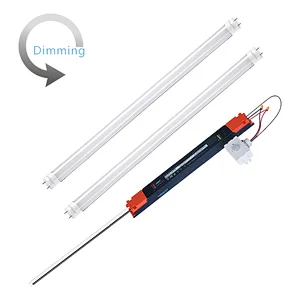

Structures of dimmable led tube lights
Specification of dimmable led tube lights
| 1x4ft led tube | 2x4ft led tube | 3x4ft led tube | 4x4ft led tube |
| Power | 12W | 24W | 36W | 48W |
| Model | ARK/WA/12K12D1(**D) | ARK/WA/24K12D2(**D) | ARK/WA/36K12D3(**D) | ARK/WA/48K12D4(**D) |
| Luminous Flux | 110/140LM | 110/140LM | 110/140LM | 110/140LM |
| Power | 14W | 28W | 42W | 56W |
| Model | ARK/WA/14K12D1(**D) | ARK/WA/28K12D2(**D) | ARK/WA/42K12D3(**D) | ARK/WA/56K12D4(**D) |
| Luminous Flux | 110/140LM | 110/140LM | 110/140LM | 110/140LM |
| Power | 18W | 36W | 54W | 72W |
| Model | ARK/WA/18K12D1(**D) | ARK/WA/36K12D2(**D) | ARK/WA/54K12D3(**D) | ARK/WA/72K12D4(**D) |
| Luminous Flux | 110/140LM | 110/140LM | 110/140LM | 110/140LM |
| DLC certification | Y | Y | Y | Y |
| Dimension | 1.1"X 47" | 1.1"X 47" | 1.1"X 47" | 1.1"X 47" |
| Light Source | SMD2835 LED | |||
| Luminous Efficacy | >110/140lm/w | |||
| Operation Temp | -40 to +45℃ | |||
| CRI | 80 | |||
| Life Span | 50,000 hours at 25℃ | |||
| Voltage | 100-277VAC / 50-60HZ | |||
| Driver | UL listed power supply | |||
| Emergency Module | Available | |||
| Dimming | 0-10V | |||
| Sensor | Daylight sensor Microwave motion available 2 & 1 | |||
| Beam Angle | 120° | |||
| PF | >0.95 | |||
| Warranty | 5 Years | |||
Wireless Bluetooth Mesh Lighting Control Switch
Dimmable Led tube lights Bluetooth APP Switch
Support iOS, Android phones.
Easily add and manage lamps and smart switches.
* Use APP to group lamps.
* Set lighting scenes.
* Manage timer tasks.
* Configure delay time of human motion sensor.
* Configure group linkage control.
* Manage lamps of different areas in one smartphone.
* Share control privilege among smartphones
* Assign different privileges to staff to manage lamps.
* Compatible with most Android phones

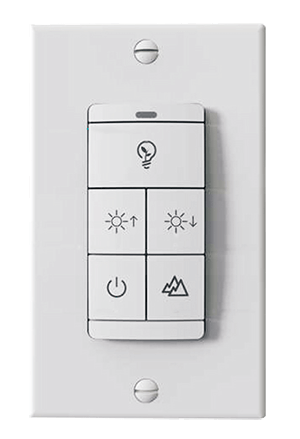

Dimmable Led tube lights Bluetooth Panel Switch
Powered by two AAA batteries.
Bluetooth communication.
No wires needed. Easy installation: suitable for surface-mounted or recessed in the wall. Or just leave it on the desk.
When the voltage less than 2.6V, press any buttons and the red light flashes.
Industries We Serve
The intelligent energy-efficient Bluetooth mesh lighting control system
